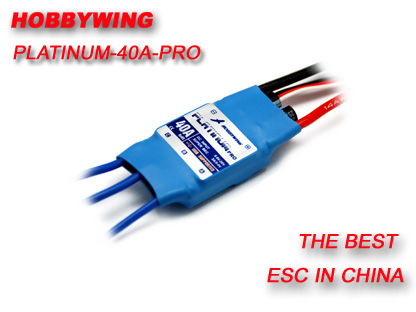

Hobbywing-Platinum-40A-PRO Brushless Speed controller ESC
[Hobbywing_pl]
$28.00


Platinum-40A-PRO ESC belongs to Hobbywing’s "Platinum" series products line, it is the most significant top-class product for aircraft and helicopter.
Specification:

1 Typical Applications
1.1 Super powerful for 450 and 400 class helicopter
1.2 Very powerful for middle scale aircraft

2 Specification
2.1 Output: Continuous 40A, burst 60A up to 10 seconds.
2.2 Input Voltage: 2-6 cells lithium battery or 5-18 cells NIMH battery.
2.3 BEC: Switching mode DC-DC regulator. 3A@5.25V or 3A@6V switchable by user progromming.
2.4 Control Signal Transmission: Optically coupled system.
2.5 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
2.6 Size: 59mm (L) * 27mm (W) * 12mm (H).
2.7 Weight: 38g.

AC-RC Hobby

This product was added to our catalog on Tuesday 23 August, 2011.
